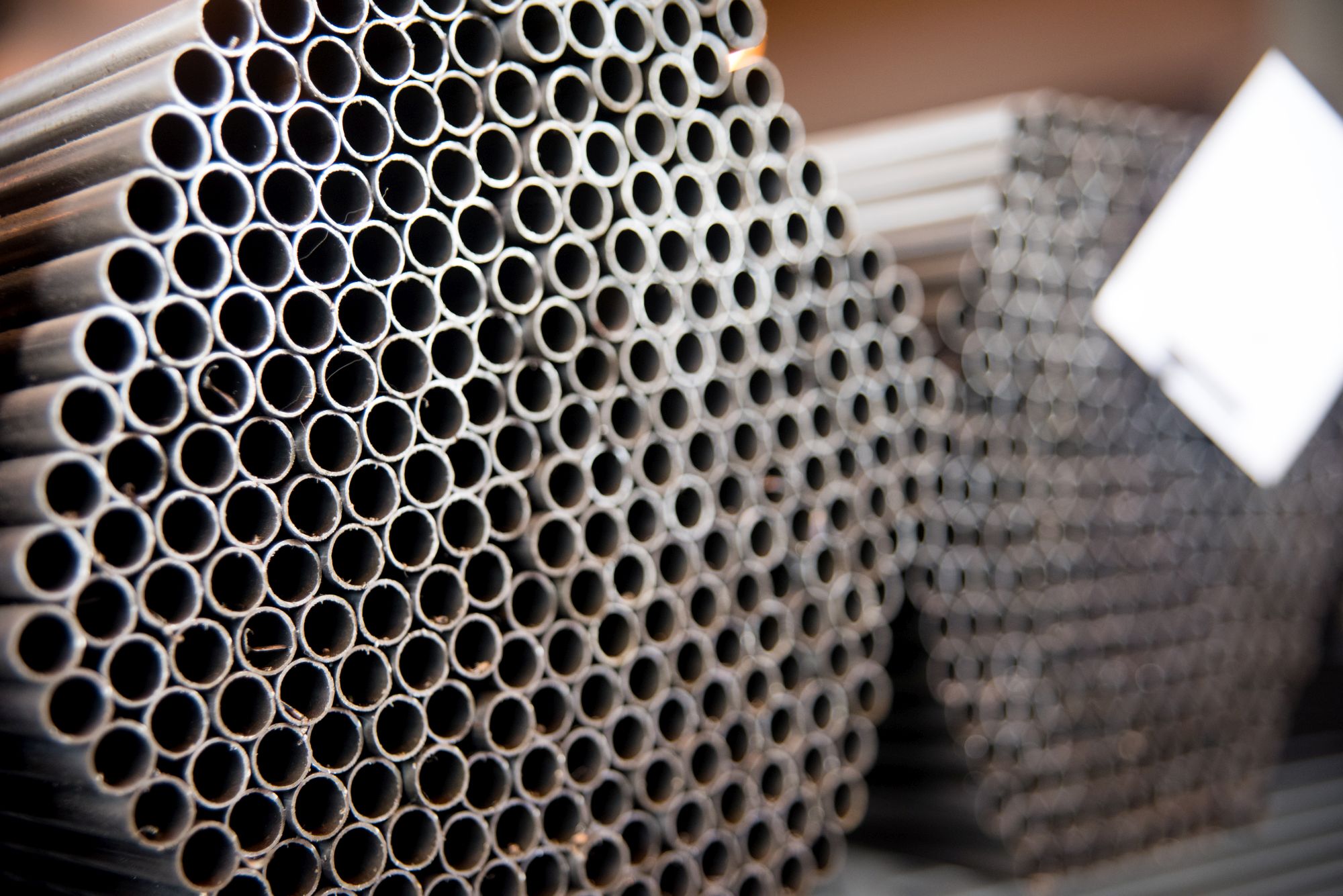

IIL Cold Rolled Steel Tubing

IIL Cold Rolled (CR) steel tubes are predominantly used in the automotive, motorcycle, bicycle, transformer industries and in the manufacturing of fans, furniture, tents and other mechanical and general engineering items.

IIL CR steel tubes are certified as European Conformity Standards (CE) and are manufactured in accordance with the highest international standards (BS 1717:1983, BS EN 10305-3: 2010, BS EN 10305-5:2010 & EN 10296-1:2003).

IIL CR steel tubes are available in round, square, rectangle, oval and elliptical shapes and in various sizes with thickness range from 0.6mm to 2.00mm.

Product Suitability

Ideal for: Chrome, Bending, Drawing

Applications

Transformers
Automotive
Motorcycles/Bicycles
Fans
Furniture
Tents

Guaranteed Compliance to International Standards

Diameter
Shape
Wall thickness
Weight/Length

Salient Features

Environmentally friendly
Guaranteed tube count per bundle
Over 50 years of manufacturing experience and exporting to 60 countries
Certification: ISO Standards 9001, 14001, ISO 45001 and CE

COLD ROLLED - ROUND TUBES RANGE

Conforming to BS 1717, BS EN 10305-3: 2010 & EN 10296-1:2003 (Formerly BS 6323-5:1982)
Size	Tubes Per Bundle	Thickness (mm) Kilogram / Meter (KG/M)
(mm)	Number	0.6	0.7	0.9	1	1.2	1.6	2
9.00	394	0.124	0.143	0.18		0.231		2
10.00	351	0.14	0.161	0.202		0.26
12.70	271	0.179	0.207	0.262	0.289	0.34
15.90	271	0.226	0.262	0.333	0.367	0.435	0.564	0.686
16.00	200							0.691
17.50	271					0.482	0.627	0.765
19.05	271	0.273	0.317	0.403	0.445	0.528	0.689	0.841
20.60	271						0.75	0.917
22.00	217						0.805
22.20	217		0.371	0.473		0.621	0.813	0.996
23.80	169						0.876
25.40	217	0.367	0.426	0.544	0.602	0.716	0.939	1.154
28.60	169			0.615	0.681	0.811	1.065
30.00	169			0.646		0.852	1.121
31.80	169		0.537	0.686	0.760	0.906	1.192	1.47
35.00	61					1	1.318
38.10	61			0.826		1.092	1.44
42.20	61			0.917		1.213	1.602
48.10	61			1.048		1.388	1.835
60.30	61			1.318		1.749
63.50	61					1.844	2.442
73.02	37					2.125	2.818
75.90	37					2.211	2.932

COLD ROLLED - SQUARE TUBES RANGE

Conforming to BS 1717, BS EN 10305-3: 2010 & EN 10296-1:2003 (Formerly BS 6323-5:1982)
Size	Tubes Per Bundle	Thickness (mm) Kilogram / Meter (KG/M)
(mm)	Number	0.6	0.7	0.8	0.9	1	1.2	1.6
10x10	294		0.317	0.36	0.403	0.445	0.528
12x38	200		0.537	0.612	0.686	0.76	0.906
15x30	150				0.615		0.811
20x40	150		0.646	0.736	0.826	0.915	1.092	1.44
25x40	150						1.213	1.602
25x50	96			0.933	1.048	1.162	1.388	1.835
30x50	96				1.048
30x60	117			1.109	1.245	1.381	1.651	2.186
40x80	70			1.482	1.665	1.847	2.211	2.932

COLD ROLLED - OVAL TUBES RANGE

Conforming to BS 1717, BS EN 10305-3: 2010 & EN 10296-1:2003 (Formerly BS 6323-5:1982)
Size	Tubes Per Bundle	Thickness (mm) Kilogram / Meter (KG/M)
(mm)	Number	0.6	0.7	0.8	0.9	1.2	1.6	2
16x30	200				0.544	0.716
16x40	200					0.906	1.192	1.47
30x50	100					1.213	1.602	1.983

COLD ROLLED - ELIPTICAL TUBES RANGE

Conforming to BS 1717, BS EN 10305-3: 2010 & EN 10296-1:2003 (Formerly BS 6323-5:1982)
Size	Tubes Per Bundle	Thickness (mm) Kilogram / Meter (KG/M)
(mm)	Number	0.6	0.7	0.8	0.9	1.2	1.6
13x23	200				0.403	0.528	0.689
19x42	200				0.686	0.906
24x56	100					1.213

Frequently Asked Questions

What manufacturing advantages do cold rolled steel tubes offer?

Cold rolled steel tubes are manufactured with tighter dimensional tolerances and a smoother surface finish than hot rolled alternatives. This makes them ideal for precision fabrication, bending, drawing, and chrome-plated components.

Are Cold Rolled Steel Tubes suitable for decorative finishing?

Yes, Cold Rolled Steel Tubes have a smooth, uniform surface that is well suited for decorative finishes such as chrome plating, painting, and powder coating. This makes them a preferred choice for furniture, automotive parts, and consumer products.

What shapes are available in Cold Rolled Steel Tubing?

International Industries manufactures Cold Rolled Steel Tubing in multiple profiles, including round, square, rectangular, oval, and elliptical shapes. These options provide greater flexibility for manufacturers working on engineering and fabrication projects.

Why do manufacturers choose Cold Rolled Steel Tubes for precision engineering?

Manufacturers prefer these tubes because they deliver consistent dimensions, reliable weld quality, and excellent formability. These qualities help improve production efficiency while minimizing material waste in precision engineering applications.

Who commonly uses Cold Rolled Steel Tubing in Pakistan?

Manufacturers, furniture makers, automotive suppliers, and engineering workshops in Karachi and other cities rely on Cold Rolled Steel Tubing for precision fabrication and high-quality finished products.
