Construction Solutions
We offer comprehensive engineering support across complex infrastructure and industrial projects. We specialize in:
- Modular scaffolding systems (Tube & Clamp, Ringlock, Frames & Brace)
- Shoring and formwork solutions
- Pre-Engineered Metal Buildings (PEMB)
- Integrated Mechanical, Electrical & Plumbing (MEP) solutions
- Light pole manufacturing
From structural access systems to complete building frameworks, we ensure safe, efficient, and compliant project execution. Our scaffolding and shoring systems are engineered to meet demanding safety standards while enabling faster construction cycles.
With deep expertise in PEMB structures, we deliver complete solutions—from structural design and detailing to fabrication and installation—ensuring cost efficiency, speed, and quality control throughout the project lifecycle.
Whether supporting local developments or international ventures, our Construction Solutions are built to perform under pressure and stand the test of time.
Scaffold Tubes
.jpeg)
.jpeg)
.jpeg)

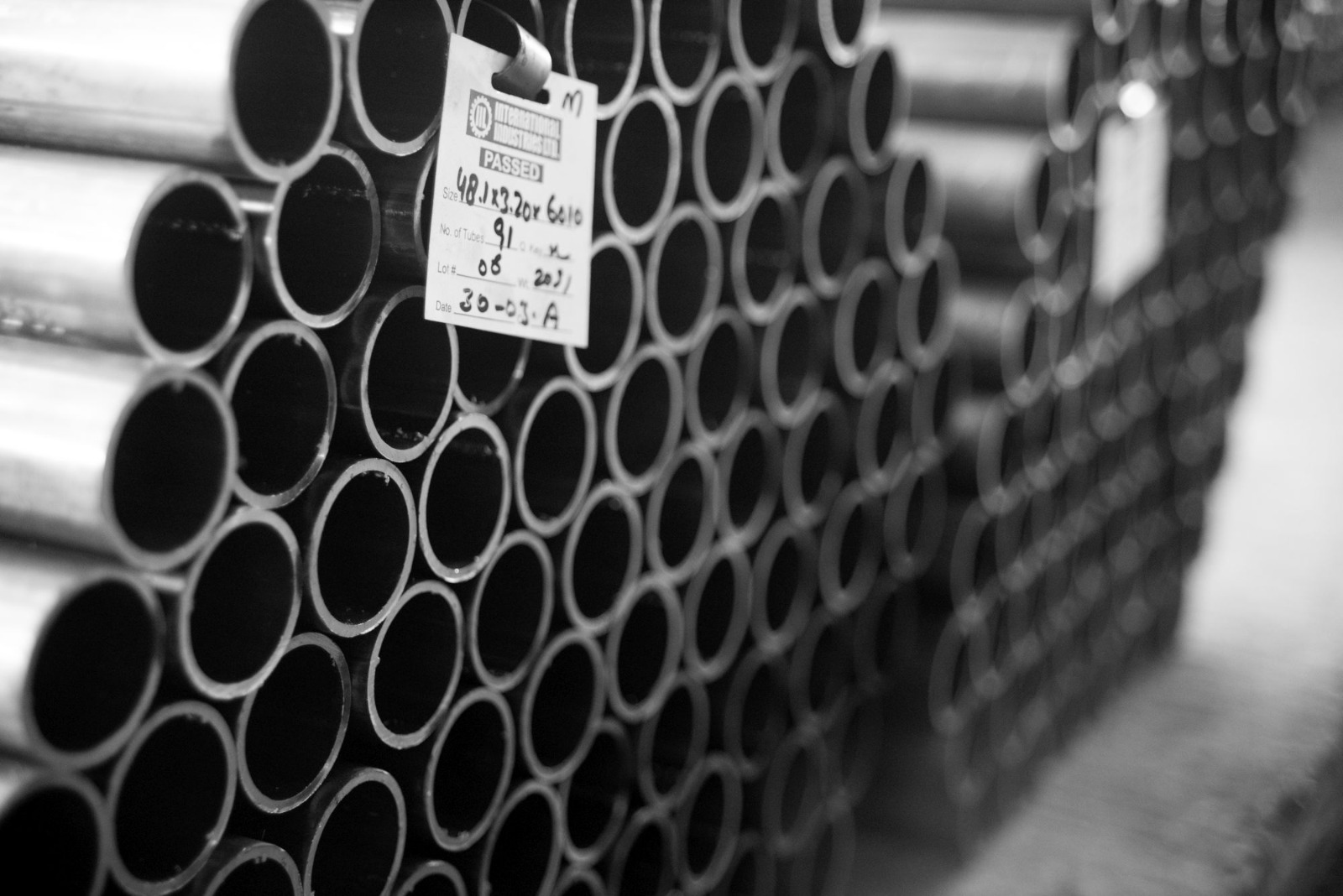

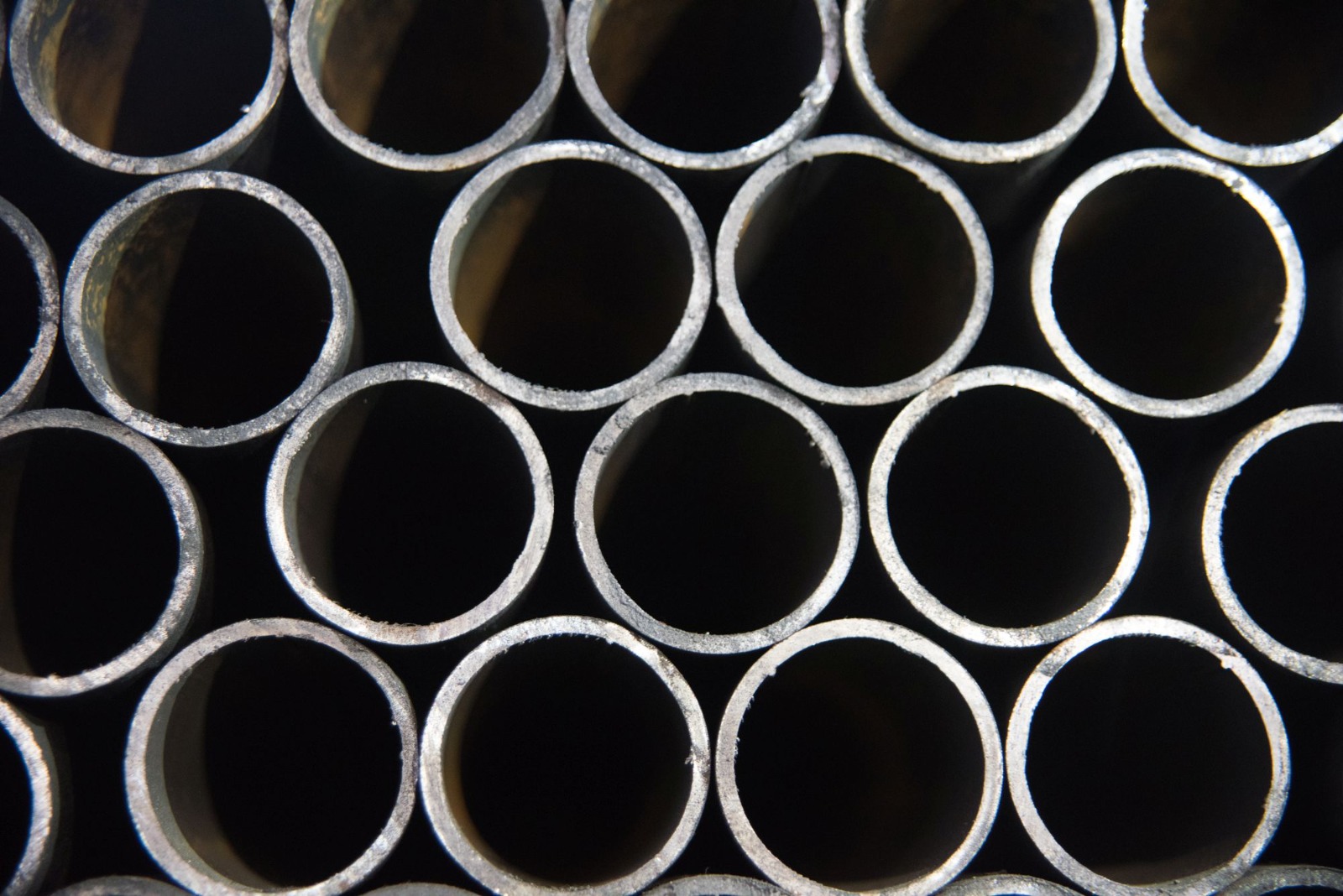

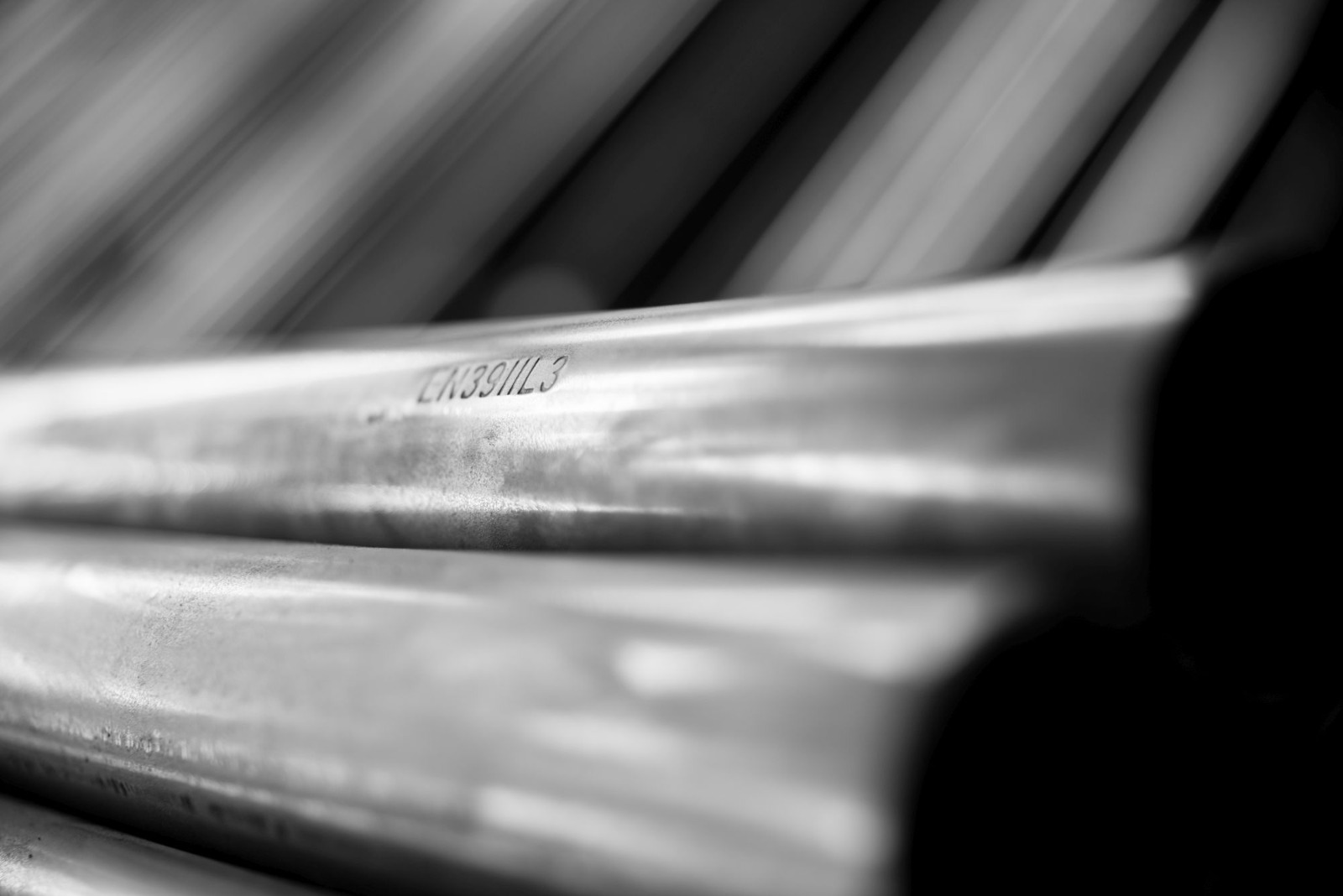

Scaffold Tubes
High-quality scaffold tubes manufactured to international standards
SCAFFOLD TUBE MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
EN 39 Type 3
| Length (mm) | Thickness (mm) | Weight (Kg) | Product Code |
|---|---|---|---|
| 1000 | 3.20 | 3.56 | ST3-39-1000-M/P/G |
| 2000 | 3.20 | 7.12 | ST3-39-2000-M/P/G |
| 3000 | 3.20 | 10.68 | ST3-39-3000-M/P/G |
| 4000 | 3.20 | 14.24 | ST3-39-4000-M/P/G |
| 5000 | 3.20 | 17.80 | ST3-39-5000-M/P/G |
| 6000 | 3.20 | 21.36 | ST3-39-6000-M/P/G |
EN 39 Type 4
| Length (mm) | Thickness (mm) | Weight (Kg) | Product Code |
|---|---|---|---|
| 1000 | 4.00 | 4.37 | ST4-39-1000-M/P/G |
| 2000 | 4.00 | 8.74 | ST4-39-2000-M/P/G |
| 3000 | 4.00 | 13.11 | ST4-39-3000-M/P/G |
| 4000 | 4.00 | 17.48 | ST4-39-4000-M/P/G |
| 5000 | 4.00 | 21.85 | ST4-39-5000-M/P/G |
| 6000 | 4.00 | 26.22 | ST4-39-6000-M/P/G |
EN 10219
| Length (mm) | Thickness (mm) | Weight (Kg) | Product Code |
|---|---|---|---|
| 1000 | 3.20 | 3.56 | ST-19-1000-M/P/G |
| 2000 | 3.20 | 7.12 | ST-19-2000-M/P/G |
| 3000 | 3.20 | 10.68 | ST-19-3000-M/P/G |
| 4000 | 3.20 | 14.24 | ST-19-4000-M/P/G |
| 5000 | 3.20 | 17.80 | ST-19-5000-M/P/G |
| 6000 | 3.20 | 21.36 | ST-19-6000-M/P/G |

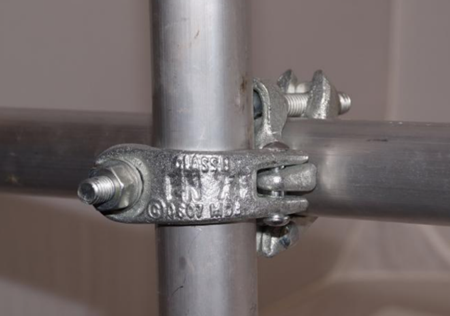

Scaffold Fitting & Accessories
Scaffold Fitting & Accessories
Professional scaffold fittings and accessories for secure connections
Scaffold fitting are the clamps/couplers that hold tubes together. Double & Swivel coupler are use to fix tubes in load-bearing connections. Pressed sleeves are use to join tube end to end.
CLAMPS/COUPLERS
| Scaffold Fitting | Steel Type | Size | Standard | Product Code |
|---|---|---|---|---|
| Double Coupler | Casted | 48.30mmx 48.30mm | EN 74 | CT-DBC-001 |
| Swivel Coupler | Casted | 48.30mmx 48.30mm | EN 74 | CT-SWC-001 |
| Double Coupler | Dropped Forged | 48.30mmx 48.30mm | BS 1139 | DF-DBC-001 |
| Swivel Coupler | Dropped Forged | 48.30mmx 48.30mm | BS 1139 | DF-SWC-001 |
| Sleeve Coupler | Pressed Sleeves | 48.30mmx 48.30mm | BS 1139 | PS-SLC-001 |
Casted and forged couplers are available as per the compliance of EN74 & BS1139.

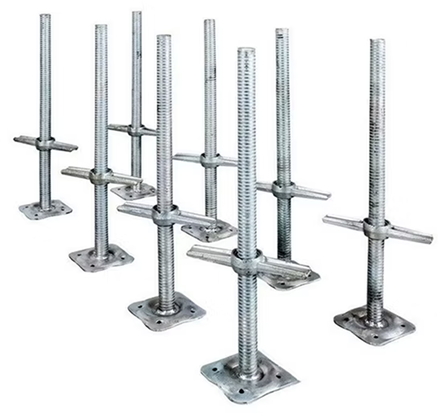

Hollow Base Jack
Hollow Base Jack
The adjustable threaded base jack is combination of jack and base plate, used to level off the scaffolding standard at the same height.
HOLLOW BASE JACK-ELECTRO GALVANIZED (G)
| Length(mm) | Weight (Kg) | Product Code |
|---|---|---|
| M38 x 600mm (150 x 150 x 5.0mm) | 3.39 | HBJ-600-EG |

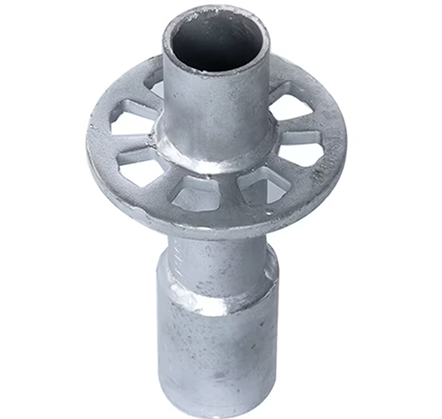

Ring lock Base Collar
Ring lock Base Collar
The base collar with a simpler perforated ring placed over the base jack and enables the erection of a simple base structure from the scaffolding.
RINGLOCK BASE COLLAR- HOT DIPPED GALVANIZED(G)
| Length(mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|
| 280 | 57mm x 3.5mm x 280mm | 1.72 | RBC-280-HDG |

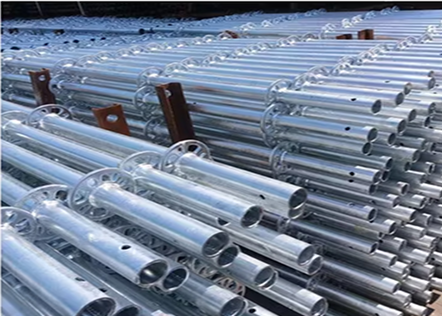

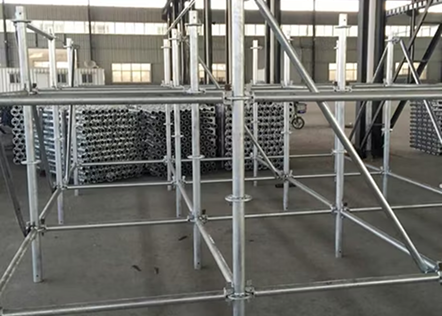

Ringlock Standard(Vertical)
Ringlock Standard(Vertical)
The vertical standard carries the load from the scaffold down to the ground. The standard tube with an outer diameter of 48.3mm has a rosette ring at a 0.5m interval.
RINGLOCK STANDARD- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Length(mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|
| 500 | 48.3mm x 3.2mm | 3.23 | RLS-500-M/P/G |
| 1000 | 48.3mm x 3.2mm | 5.48 | RLS-1000-M/P/G |
| 1500 | 48.3mm x 3.2mm | 7.73 | RLS-1500-M/P/G |
| 2000 | 48.3mm x 3.2mm | 9.98 | RLS-2000-M/P/G |
| 2500 | 48.3mm x 3.2mm | 12.23 | RLS-2500-M/P/G |
| 3000 | 48.3mm x 3.2mm | 14.48 | RLS-3000-M/P/G |
Coating: The galvanization microns are in every case above 55, above and beyond what the standard specifies.
Spigot Connector
Spigot Connector
Vertical/Standards are connected end to end by an internal spigot. The gravity lock pin locked the verticals.
SPIGOT- HOT DIPPED GALVANIZED(G)
| Length(mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|
| 270 | 38mm x 270mm x 4.0mm | 0.98 | RSP-270-HDG |

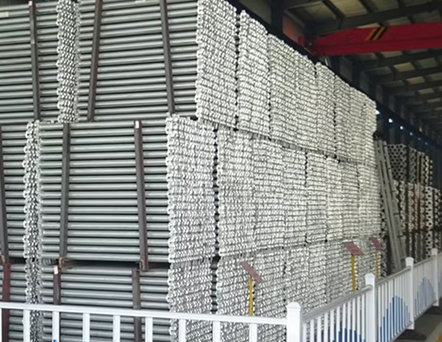

Ledger (Horizontal)
Ledger (Horizontal)
The ledger consists of a 48.3mm diameter tube with wedge-shaped end pieces at both ends. The ledger is used in various lengths as support for steel planks. The ledger is also used as a guardrail for side protection.
LEDGER- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Length(ft) | Length(mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|---|
| 3 | 914 | 48.3mm x 3.2mm | 3.64 | HL-0914-M/P/G |
| 4 | 1219 | 48.3mm x 3.2mm | 4.74 | HL-1219-M/P/G |
| 5 | 1524 | 48.3mm x 3.2mm | 5.84 | HL-1524-M/P/G |
| 6 | 1829 | 48.3mm x 3.2mm | 6.94 | HL-1829-M/P/G |
| 7 | 2134 | 48.3mm x 3.2mm | 8.04 | HL-2134-M/P/G |
| 8 | 2438 | 48.3mm x 3.2mm | 9.10 | HL-2438-M/P/G |
Note: Ringlock Scaffolding Ledger: other sizes are available on request. An intermediate transom can be manufactured upon request.

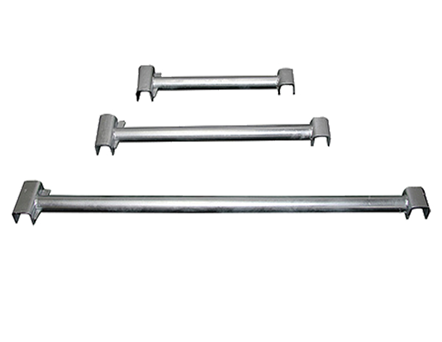

Transom (Intermediate Ledger)
Transom (Intermediate Ledger)
A ledger may also serve as an intermediate ledger, taking the form of U-shaped ledger.
TRANSOM- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Length(ft) | Length(mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|---|
| 3 | 914 | 48.3mm x 3.2mm | 4.11 | IT-0914-M/P/G |
| 4 | 1219 | 48.3mm x 3.2mm | 5.12 | IT-1219-M/P/G |
| 5 | 1524 | 48.3mm x 3.2mm | 6.28 | IT-1524-M/P/G |
| 6 | 1829 | 48.3mm x 3.2mm | 7.37 | IT-1829-M/P/G |
Note: Other lengths/sizes are available on request

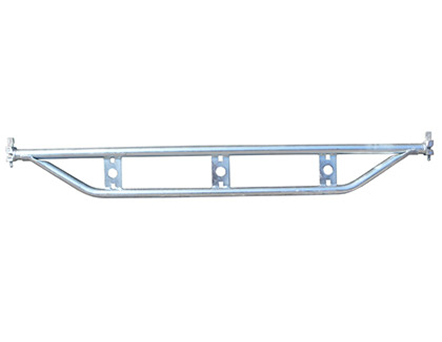

Bridge Ledger (Horizontal)
Bridge Ledger (Horizontal)
The ledger consists of a 48.3mm diameter tube with wedge-shaped end pieces at both ends. The ledger is reinforced to used in various lengths as support for steel planks. The bridge ledger is used for heavy duty applications
BRIDGE LEDGER- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Length(ft) | Length(mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|---|
| 5 | 1524 | 48.3mm x 3.2mm | 48.3mm x 3.2mm | BL-1524-M/P/G |
| 6 | 1829 | 48.3mm x 3.2mm | 48.3mm x 3.2mm | BL-1829-M/P/G |
| 7 | 2134 | 48.3mm x 3.2mm | 48.3mm x 3.2mm | BL-2134-M/P/G |
| 8 | 2438 | 48.3mm x 3.2mm | 48.3mm x 3.2mm | BL-2438-M/P/G |
Note: Ring lock Scaffolding Bridge Ledger: other sizes is available on request. Truss ledger can also be available upon request.

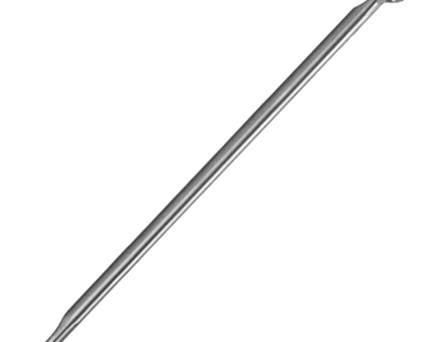

Brace (Diagonal)
Brace (Diagonal)
The diagonal brace consists of a 48.3mm tube with wedge connectors at both ends. It is used to increase the rigidity of scaffold structure.
Diagonal braces are described by the horizontal rung and the rise on all standards is 2M.
DIAGONAL BRACES- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Bay Length (ft) | Bay Length (mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|---|
| 3 | 914 | 48.3mm x 2.6mm | 7.84 | DB-0914-M/P/G |
| 4 | 1219 | 48.3mm x 2.6mm | 8.24 | DB-1219-M/P/G |
| 5 | 1524 | 48.3mm x 2.6mm | 8.74 | DB-1524-M/P/G |
| 6 | 1829 | 48.3mm x 2.6mm | 9.24 | DB-1829-M/P/G |
| 7 | 2134 | 48.3mm x 2.6mm | 9.84 | DB-2134-M/P/G |
| 8 | 2438 | 48.3mm x 2.6mm | 10.44 | DB-2438-M/P/G |
Note: Other lengths/sizes is available on request

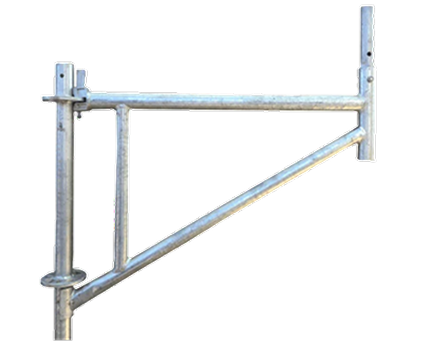

Side Bracket
Side Bracket
The side bracket can be used to enlarge the working platform. These available extensions are either for one plank bracket, a two plank bracket or a three plank bracket.
SIDE BRACKET- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Bay Length (ft) | Bay Length (mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|---|
| 1 | 304 | 48.3mm x 3.2mm | 48.3mm x 3.2mm | SB-304-M/P/G |
| 2 | 610 | 48.3mm x 3.2mm | 48.3mm x 3.2mm | SB-610-M/P/G |
| 3 | 914 | 48.3mm x 3.2mm | 48.3mm x 3.2mm | SB-914-M/P/G |
Customized bracket extensions are available upon request.
Side Protections
.png)
.png)

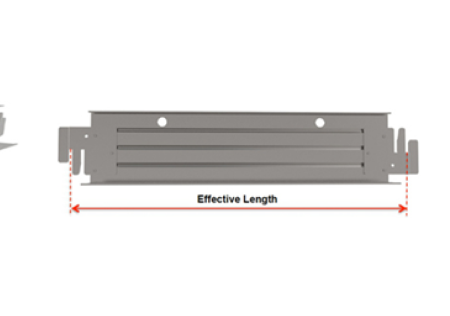

Side Protections
The toe board (150mm high and 100mm wide) made of pre-galvanized steel limit each scaffolding level and prevent material from falling down.
SIDE BRACKET – MILL FINISH (M) / PAINTED (P) / GALVANIZED (G)
| Bay Length (ft) | Bay Length (mm) | Dimensions | Product Code |
|---|---|---|---|
| 1 | 304 | 48.3mm x 3.2mm | SB-304-M/P/G |
| 2 | 610 | 48.3mm x 3.2mm | SB-610-M/P/G |
| 3 | 914 | 48.3mm x 3.2mm | SB-914-M/P/G |
Note: Other lengths/sizes is available on request

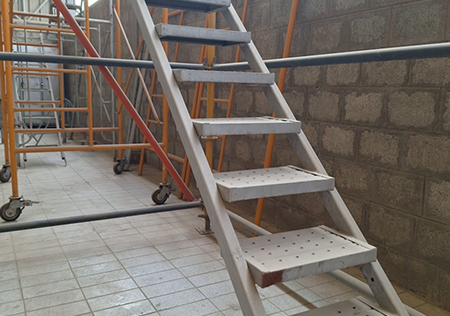

Access Stairs
Access Stairs
The access stairway with load capacity of 150Kg is available upon request in customized lengths.
ACCESS STAIR – MILL FINISH (M) / PAINTED (P) / GALVANIZED (G)
| Length (mm) | Material | Product Code |
|---|---|---|
| L 2438 H 2000 | S235/S275 | AST-2438-M/P/G |
| L 3048 H 2000 | S235/S275 | AST-2438-M/P/G |
Note: Other lengths/sizes is available on request

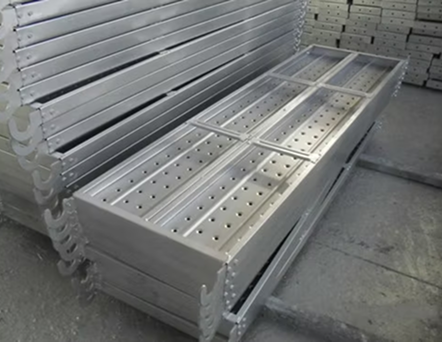

Catwalk Planks
Catwalk Planks
ES provides a versatile range of catwalk planks, available with or without hooks, to suit diverse requirements. Designed and rigorously tested, our planks meet standard requirements of BS EN 12811-1.
Thickness (height) is 45 mm, the width is 250 mm
CATWALK PLANKS - PRE-GALVANIZED (PG)
1.5mm CATWALK PLANKS WITHOUT HOOK
| Length (mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|
| 915 | 45mm x 250mm | 5 | CWP-914PG |
| 1219 | 45mm x 250mm | 6.4 | CWP-1219PG |
| 1524 | 45mm x 250mm | 8.1 | CWP-1524PG |
| 1829 | 45mm x 250mm | 9.76 | CWP-1829PG |
| 2134 | 45mm x 250mm | 11.1 | CWP-2134PG |
| 2438 | 45mm x 250mm | 12.84 | CWP-2438PG |
1.5mm CATWALK PLANKS WITH 50mm HOOK
| Length (mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|
| 914 | 45mm x 250mm | 5.7 | RCWP-914PG |
| 1219 | 45mm x 250mm | 7.1 | RCWP-1219PG |
| 1524 | 45mm x 250mm | 8.7 | RCWP-1524PG |
| 1829 | 45mm x 250mm | 10.36 | RCWP-1829PG |
| 2134 | 45mm x 250mm | 11.8 | RCWP-2134PG |
| 2438 | 45mm x 250mm | 13.51 | RCWP-2438PG |

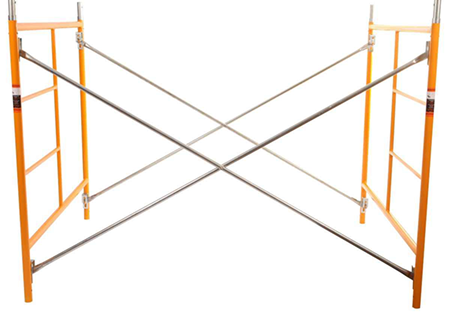

Cross Brace
Cross Brace
CROSS BRACE- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Height(mm) x Width(mm) | Dia(mm) x Thickness(mm) | Weight (Kg) | Product Code |
|---|---|---|---|
| 610 x 1219 | 26.7 x 1.8 | Will be calculated after drawing | CB-24x48-M/P/G |
| 1219 x 1219 | 26.7 x 1.8 | Will be calculated after drawing | CB-48x48-M/P/G |
| 610 x 1524 | 26.7 x 1.8 | 3.8 | CB-24x60-M/P/G |
| 1219 x 1524 | 26.7 x 1.8 | 4.5 | CB-48x60-M/P/G |
| 610 x 1829 | 26.7 x 1.8 | 4.4 | CB-24x72-M/P/G |
| 1219 x 1829 | 26.7 x 1.8 | 5.0 | CB-48x72-M/P/G |
| 610 x 2134 | 26.7 x 1.8 | 5.1 | CB-24x84-M/P/G |
| 1219 x 2134 | 26.7 x 1.8 | 5.5 | CB-48x84-M/P/G |

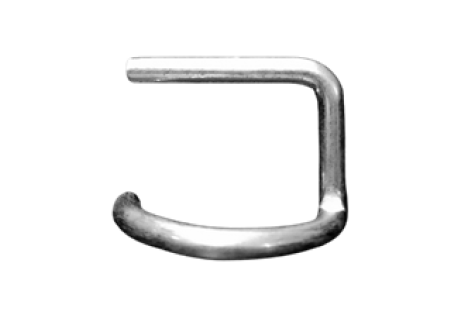

Coupling Pin
Coupling Pin
Frames are connected end to end by an internal coupling pin. The locking pin locks the frames together.
COUPLING PIN- HOT DIPPED GALVANIZED(G)
Coupling Pin
| Length(mm) | Dimensions | Weight (Kg) | Product Code |
|---|---|---|---|
| 225 | 36mm x 225mm | 0.35 | CP-270-HDG |

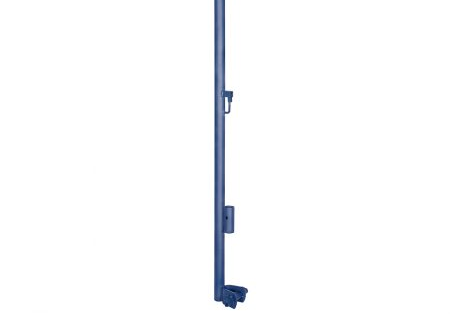

Guard Rail & Guard Post
Guard Rail & Guard Post
Guard post and punch hole top & mid rail are available to provide a guard system at the working platform to prevent workers from falling to lower level.
GUARD RAIL - MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Length(mm) | Dia(mm) x Thickness(mm) | Weight (Kg) | Product Code |
|---|---|---|---|
| 914 | 26.7 x 1.8 | 1.10 | GR-914-M/P/G |
| 1219 | 26.7 x 1.8 | 1.50 | GR-1219-M/P/G |
| 1524 | 26.7 x 1.8 | 1.80 | GR-1524-M/P/G |
| 1829 | 26.7 x 1.8 | 2.10 | GR-1829-M/P/G |
| 2134 | 26.7 x 1.8 | 2.50 | GR-2134-M/P/G |
GUARD POST-MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Length(mm) | Dia(mm) x Thickness(mm) | Weight (Kg) | Product Code |
|---|---|---|---|
| 1156 | 42.2 x 2.3 | 3.00 | GP-1000-M/P/G |
Note:Customized surface finish and cross braces lengths are available upon request.
Ladder
A ladder for upper-level access is available, manufactured as per EN 1004 & EN 131 Standards. The ladder is manufactured with steel tubes of material S235, S275 & S355, or equivalent. The ladder tread is manufactured with PPGI , slip resistance surface finishes.
LADDER- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
Ladder
| Length(mm) | Material | Product Code |
|---|---|---|
| L 1829 H 1930 | S235/S275 | LA-1829-M/P/G |
| L 2134 H 1930 | S235/S275 | LA-2134-M/P/G |
Note: Customized ladder length and height is available.
Mobile Scaffold Towers
Mobile access and working towers are constructed using standard scaffold components, except for the base jacks. Instead of base jacks, mobile or rolling scaffolds are equipped with casters. Our mobile towers and their components are designed and manufactured in compliance with EN 12810, EN 12811, and EN 1004 standards.
These towers are available in load classes 2 and 3 as per EN 1004 specifications. In addition to standard scaffold components, side protections and guardrails are included to enhance safety for mobile towers.
Caster
Caster
Casters are crucial for mobility and must be securely fixed to the tower to prevent accidental detachment. Wheels are provided with brake lock steel and rubber. Below is the available range of wheel casters

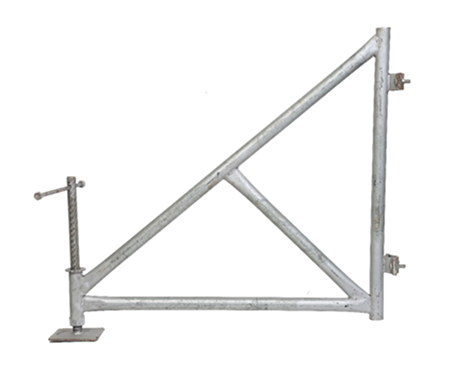

Outriggers
Outriggers
Outriggers are essential components used to extend the base and enhance stability. Regulatory standards require outriggers when the height-to-base-width ratio exceeds 4:1 (or 3:1 in certain jurisdictions).
Our manufactured outriggers provide an outreach of up to 4 feet. Customized designs for greater outreach can also be produced upon request to meet specific project requirements.
OUTRIGGER- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
OUTRIGGER
| Description | Weight (Kg) | Product Code |
|---|---|---|
| 2ft Reach Steel Outrigger with Clamps | 10 | OR-900-M/P/G |
| 3ft Reach Steel Outrigger with Clamps | 12 | OR-1200-M/P/G |

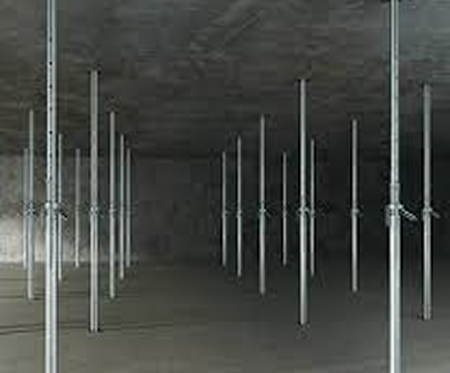

Shoring Accessories
.png)
.png)
.png)

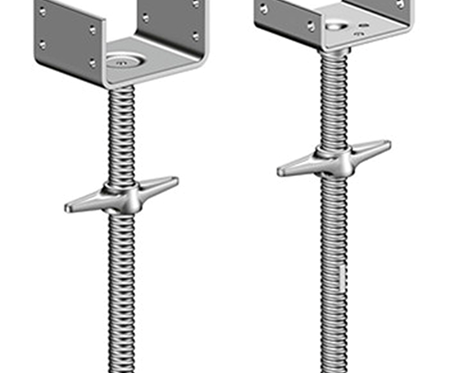

Shoring Accessories

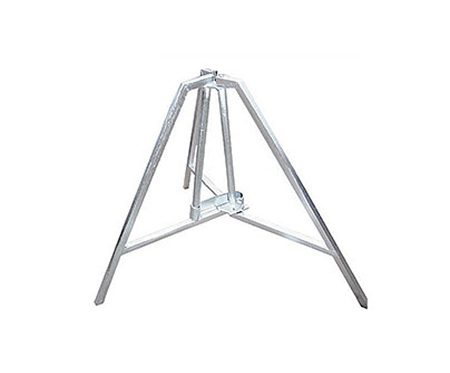

Tripod stand capable of supporting the prop when laying on site and when laying on the floor.
ACESSORIES- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
Shoring Accessories
| Description | Weight (Kg) | Product Code |
|---|---|---|
| Fork Head | 3.1 | FH-001-M/P/G |
| Tripod | 5.5 | TRI-001-M/P/G |
Standard Walkthrough Frame
.png)
.png)
Standard Walkthrough Frame

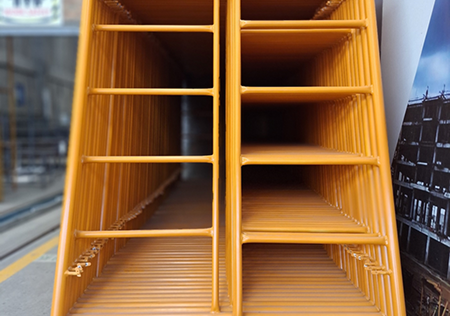

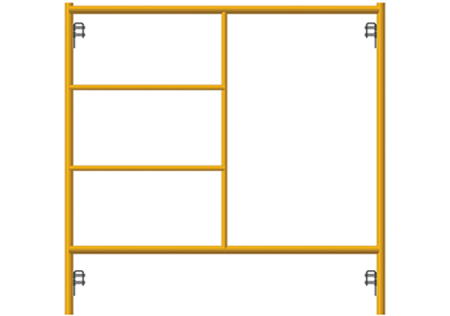

The standard frame and walk-through frame, is available in various widths and heights to meet diverse project needs. This welded scaffolding system features a frame composed of 2 vertical legs connected by horizontal members, ensuring structural integrity and ease of assembly.
The frames are constructed from 42.2 mm diameter outer and 26.7mm bracing tubes, equipped with four flip locks for securely attaching cross braces.
Frames are positioned parallel to each other and connected using cross braces to form a single bay, providing a stable and reliable scaffolding structure. One set of main frame scaffold systems includes 2 A-frames and two sets of cross braces.
STANDARD FRAME- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Height(mm) x Width(mm) | Dia(mm) x Thickness(mm) | Weight (Kg) | Product Code |
|---|---|---|---|
| 1930 x 1524 | 42.2 x 2.3, 26.7 x 1.8 | 21.40 | FST-76x60-M/P/G |
| 1524 x 1524 | 42.2 x 2.3, 26.7 x 1.8 | 18.40 | FST-60x60-M/P/G |
| 1219 x 1524 | 42.2 x 2.3, 26.7 x 1.8 | 16.00 | FST-48x60-M/P/G |
| 1930 x 1219 | 42.2 x 2.3, 26.7 x 1.8 | 19.00 | FST-76x48-M/P/G |
| 1524 x 1219 | 42.2 x 2.3, 26.7 x 1.8 | 16.40 | FST-60x48-M/P/G |
| 1219 x 1219 | 42.2 x 2.3, 26.7 x 1.8 | 14.10 | FST-48x48-M/P/G |
| 1524 x 914 | 42.2 x 2.3, 26.7 x 1.8 | 15.10 | FST-60x36-M/P/G |
| 1524 x 610 | 42.2 x 2.3, 26.7 x 1.8 | 12.40 | FST-60x24-M/P/G |
WALK THROUGH FRAME- MILL FINISH(M)/PAINTED(P)/GALVANIZED(G)
| Height(mm) x Width(mm) | Dia(mm) x Thickness(mm) | Weight (Kg) |
|---|---|---|
| 1980 x 1524 | 42.2 x 2.3, 26.7 x 1.8 | 19.1 |
| 1980 x 1219 | 42.2 x 2.3, 26.7 x 1.8 | 18.0 |
